Automating TLS Certificate Management with Cert-Manager, ACME, and Infoblox

CertManager ACME Infoblox

Introduction

Managing TLS certificates manually is time-consuming and error-prone. Keeping track of expiry dates, generating CSRs, and updating Kubernetes secrets manually can easily lead to outages. In modern cloud-native environments, where services are dynamic and ephemeral, automation is essential — not optional.

This is where cert-manager comes in.

Cert-manager is a Kubernetes controller that automates the issuance, renewal, and management of TLS certificates from multiple sources such as Let's Encrypt, Venafi, Vault, or enterprise ACME servers like EJBCA.

When integrated with enterprise DNS systems like Infoblox, it enables fully automated, secure, and policy-compliant certificate management — ideal for internal and external workloads.

What Is Cert-Manager?

Cert-manager extends Kubernetes by introducing custom resources to manage certificates and issuers.
It continuously monitors certificate expiration, automatically requests renewals, and updates secrets used by Ingress or workloads.

Key resources introduced by cert-manager:

  • Issuer / ClusterIssuer – Defines how certificates are obtained (e.g., ACME, Vault, CA).
  • Certificate – Describes what you need (DNS names, secret storage).
  • CertificateRequest – Internal resource for tracking issuance requests.
  • Order – Tracks the lifecycle of ACME requests and challenges.

Understanding ACME and DNS-01 Challenges

ACME (Automatic Certificate Management Environment) is the protocol behind Let’s Encrypt and many enterprise CAs.
It automates certificate issuance through domain ownership validation, using challenges like DNS-01 or HTTP-01.

Here’s the simplified ACME flow:

  1. Cert-manager requests a certificate for example.org.
  2. The ACME server issues a challenge.
  3. Cert-manager proves ownership (e.g., via a DNS TXT record).
  4. Once validated, the CA issues a signed certificate.
  5. Cert-manager stores it as a Kubernetes Secret and renews it automatically.

DNS-01 challenges are particularly useful in internal environments where HTTP validation isn’t possible. They work by adding a _acme-challenge.example.org TXT record in DNS — typically automated via API access to your DNS provider.

Integrating Infoblox DNS for Automation

In enterprise networks, Infoblox often manages internal DNS zones.
To perform DNS-01 challenges automatically, cert-manager uses a webhook solver — a lightweight service that integrates with Infoblox’s WAPI (Web API).

The Infoblox webhook:

  • Receives DNS-01 validation requests.
  • Connects to the Infoblox Grid via WAPI.
  • Creates and deletes TXT records for domain validation.
  • Reports status back to cert-manager.

This enables fully automated validation without manual DNS changes.

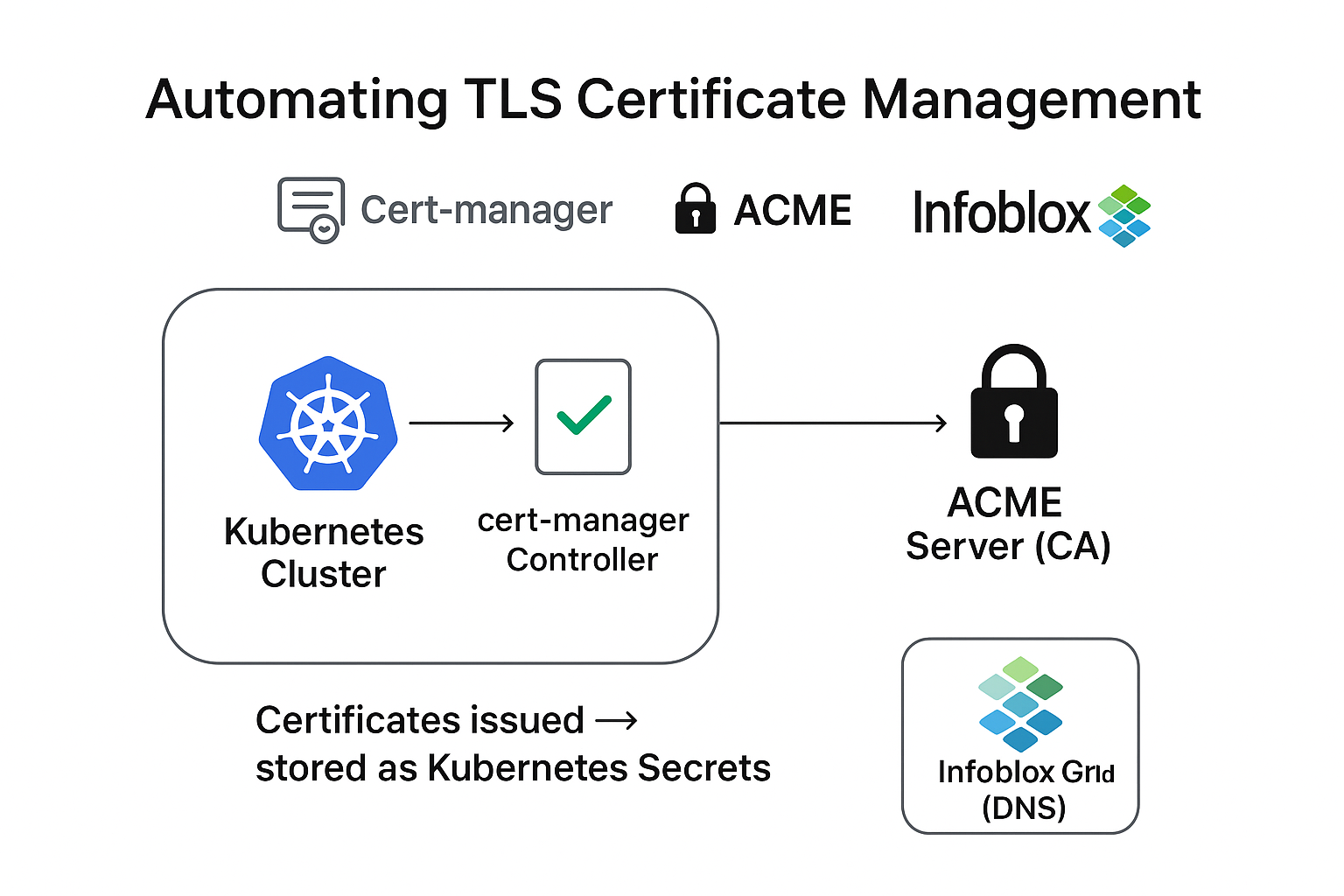

Architecture Overview


Step-by-Step Tutorial

1. Prerequisites

  • A working Kubernetes cluster.
  • An ACME-compatible CA (e.g., Let’s Encrypt or internal EJBCA).
  • Infoblox WAPI access (host, username, password).
  • Helm and kubectl installed locally.

2. Install Cert-Manager

helm repo add jetstack https://charts.jetstack.io
helm repo update

kubectl create namespace cert-manager

helm install cert-manager jetstack/cert-manager \
  --namespace cert-manager \
  --set installCRDs=true

3. Deploy Infoblox Webhook

helm repo add infobloxopen https://infobloxopen.github.io/cert-manager-webhook-infoblox/
helm repo update

helm install cert-manager-webhook-infoblox \
  infobloxopen/cert-manager-webhook-infoblox \
  -n cert-manager

4. Create Infoblox Credentials Secret

apiVersion: v1
kind: Secret
metadata:
  name: infoblox-credentials
  namespace: cert-manager
type: Opaque
stringData:
  password: "<INFOBLOX_PASSWORD>"

Apply the secret:

kubectl apply -f infoblox-secret.yaml

5. Define a ClusterIssuer for ACME + Infoblox

apiVersion: cert-manager.io/v1
kind: ClusterIssuer
metadata:
  name: internal-acme
spec:
  acme:
    email: devops@example.org
    server: https://certauthority.internal.example.org/ejbca/acme/Corporate_CA/directory
    privateKeySecretRef:
      name: internal-acme-account-key
    solvers:
    - dns01:
        webhook:
          groupName: acme.mycompany.com
          solverName: infoblox-wapi
          config:
            host: infoblox-gm.internal.example.org
            view: internal
            port: 443
            sslVerify: false
            wapiVersion: "2.11.2"
            username: acme-api-user
            secretRef:
              name: infoblox-credentials
              key: password

Apply it:

kubectl apply -f clusterissuer.yaml

6. Request a Certificate

apiVersion: cert-manager.io/v1
kind: Certificate
metadata:
  name: test-apps-example-org-tls
  namespace: apps
spec:
  secretName: test-apps-example-org-tls
  dnsNames:
  - test-apps.internal.example.org
  issuerRef:
    kind: ClusterIssuer
    name: internal-acme

kubectl apply -f certificate.yaml

7. Verify the Certificate Request

kubectl get certificaterequests -n apps
kubectl describe certificaterequest test-apps-example-org-tls-1 -n apps

Expected status:

Message: Certificate request has been approved by cert-manager.io
Reason: Pending

Once the Infoblox DNS validation succeeds, the certificate will be issued and stored as a Kubernetes Secret.

8. Check the TLS Secret

kubectl get secret test-apps-example-org-tls -n apps -o yaml

You'll see base64-encoded values for:

  • tls.crt (the certificate)
  • tls.key (the private key)

Using Ingress Annotations for Auto-Cert Generation

Cert-manager can automatically generate and renew TLS certificates for Ingress resources using simple annotations.

Example:

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: test-app-ingress
  namespace: apps
  annotations:
    kubernetes.io/ingress.class: "nginx"
    cert-manager.io/cluster-issuer: "internal-acme"
spec:
  tls:
  - hosts:
    - test-apps.internal.example.org
    secretName: test-apps-example-org-tls
  rules:
  - host: test-apps.internal.example.org
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: test-app-service
            port:
              number: 80

When you apply this Ingress, cert-manager:

  1. Detects the annotation.
  2. Automatically creates a Certificate resource.
  3. Handles validation via Infoblox.
  4. Stores and renews the TLS secret automatically.

No manual Certificate or Secret creation needed.

Automatic Renewal

Cert-manager continuously monitors certificate expiration and renews them well before expiry (by default, at 2/3 of the certificate lifetime).
The entire ACME → DNS validation → issuance → Secret update happens automatically.

Troubleshooting Tips

Issue Likely Cause Fix
Certificate stuck in "Pending" DNS TXT record not created Check Infoblox WAPI access or webhook logs
forbidden: subjectaccessreviews.authorization.k8s.io Missing RBAC roles Ensure webhook ClusterRoleBindings exist
APIService acme.mycompany.com already exists Leftover webhook CRDs Delete with kubectl delete apiservice v1alpha1.acme.mycompany.com
DNS port unreachable Firewall or network policy Test Infoblox host connectivity via nc -vz <host> 443

Conclusion

By integrating cert-manager, ACME, and Infoblox, organizations can automate their entire certificate lifecycle — from issuance to renewal — securely and at scale.
This eliminates manual effort, reduces human error, and ensures applications remain compliant and available.

In short:
✅ Set it once.
✅ Let cert-manager handle the rest.
