Setting Up Google Drive MCP for Codex on Linux

Codex connected to Google Drive through MCP

Introduction

Model Context Protocol (MCP) is a practical way to connect AI coding tools to external systems. I wanted Codex to search my Google Drive from a Linux workstation, so I set up a Google Drive MCP server and connected it to Codex.

The final setup worked, but the path there exposed several useful lessons:

  • Google Cloud project IDs matter more than display names.
  • Snap confinement can break CLI tools that need hidden config directories.
  • Google's hosted Drive MCP endpoint did not authenticate cleanly with Codex in this setup.
  • The local Google Drive MCP reference server works, but it is read-only.

This post walks through the setup, the failures, and the working architecture.

What MCP Does

MCP server translating Codex requests into Google Drive API calls

An MCP server is an adapter between an AI tool and an external system.

If you know Terraform, you can think of an MCP server a bit like a Terraform provider: it gives the client a standard interface while hiding the service-specific API calls behind it.

The front side speaks a protocol that Codex understands. The back side talks to the real service API, such as Google Drive. When the LLM needs Drive data, Codex calls an MCP tool with a structured request. The MCP server receives that request, translates it into a Drive API call, and returns the result back to Codex.

That standard interface is the useful part. Codex does not need custom Google Drive logic built in; it only needs to know how to talk to MCP servers.

Target Architecture

The working setup uses a local MCP server:

Codex CLI using a local Google Drive MCP server to call the Google Drive API

Codex does not talk to Google Drive directly. It starts a local MCP server process, and that server uses Google OAuth credentials to call the Drive API.

Step 1: Use the Correct Google Cloud Project ID

The first issue was simple but common: using the project display name instead of the project ID.

List projects with:

gcloud projects list --format="table(projectId,name,projectNumber)"

Use the value under PROJECT_ID:

gcloud config set project YOUR_PROJECT_ID

For the local MCP server, the required API is:

gcloud services enable drive.googleapis.com --project=YOUR_PROJECT_ID

The hosted Google Drive MCP API is separate:

gcloud services enable drivemcp.googleapis.com --project=YOUR_PROJECT_ID

That hosted API was useful during testing, but it was not required for the final local MCP setup.

Step 2: Create Google OAuth Credentials

The local Drive MCP server needs OAuth credentials from Google Cloud.

In Google Cloud Console:

  1. Open Google Auth Platform.
  2. Configure the OAuth consent screen.
  3. Add the minimum Drive read scope:
https://www.googleapis.com/auth/drive.readonly
  1. Create an OAuth client.
  2. Choose Desktop app.
  3. Download the OAuth JSON file.

Google Cloud Console OAuth client creation for a Desktop app

Step 3: Avoid the Snap Install of Codex

One failure looked like a normal Linux permissions issue:

Failed to read project config file /home/YOUR_USER/.codex/config.toml:
Permission denied (os error 13)

The file permissions were correct, but Codex was installed through Snap:

type -a codex

Output showed:

codex is /snap/bin/codex

Snap confinement can prevent access to hidden directories such as ~/.codex, even when POSIX permissions look correct.

The fix was to remove the Snap package and install Codex outside Snap:

sudo snap remove codex
curl -fsSL https://chatgpt.com/codex/install.sh | sh
hash -r
codex --version

After that, Codex could read ~/.codex/config.toml.

Step 4: Why the Hosted Google Drive MCP Did Not Work

I first tried Google's hosted Drive MCP endpoint:

[mcp_servers.drive]
url = "https://drivemcp.googleapis.com/mcp/v1"
scopes = [
  "https://www.googleapis.com/auth/drive.readonly",
  "https://www.googleapis.com/auth/drive.file",
]
default_tools_approval_mode = "prompt"

The login flow failed in two stages.

First:

Dynamic client registration not supported

After adding an OAuth client ID, the browser flow started, but token exchange failed:

invalid_request: client_secret is missing

That means the hosted endpoint expected a confidential OAuth client flow with a client secret. Codex's MCP OAuth path in this setup provided a client ID but not a client secret.

The hosted MCP endpoint exposed more tools, but it was not usable with Codex in this environment without a compatible client-secret flow.

Step 5: Use the Local Google Drive MCP Server

The local server that worked was:

@modelcontextprotocol/server-gdrive

Prepare a private config directory:

mkdir -p ~/.config/gdrive-mcp
chmod 700 ~/.config/gdrive-mcp

Move the downloaded OAuth JSON into place:

mv ~/Downloads/client_secret_*.json ~/.config/gdrive-mcp/gcp-oauth.keys.json
chmod 600 ~/.config/gdrive-mcp/gcp-oauth.keys.json

Run the auth flow:

GDRIVE_OAUTH_PATH="$HOME/.config/gdrive-mcp/gcp-oauth.keys.json" GDRIVE_CREDENTIALS_PATH="$HOME/.config/gdrive-mcp/credentials.json" npx -y @modelcontextprotocol/server-gdrive auth

Expected output:

Launching auth flow...
Credentials saved. You can now run the server.

Secure the generated credentials:

chmod 600 ~/.config/gdrive-mcp/credentials.json

Step 6: Configure Codex

The Codex config lives at:

~/.codex/config.toml

The working MCP config is:

[mcp_servers.gdrive]
command = "npx"
args = ["-y", "@modelcontextprotocol/server-gdrive"]
default_tools_approval_mode = "prompt"

[mcp_servers.gdrive.env]
GDRIVE_CREDENTIALS_PATH = "/home/YOUR_USER/.config/gdrive-mcp/credentials.json"

Do not add auth to the Codex MCP config. This is wrong:

args = ["-y", "@modelcontextprotocol/server-gdrive", "auth"]

The auth command is only for manually generating credentials.json. Codex should start the server itself, not the browser login flow.

Step 7: Verify the MCP Server

Start Codex:

codex

Inside Codex:

/mcp

The gdrive server should appear with search/read capabilities.

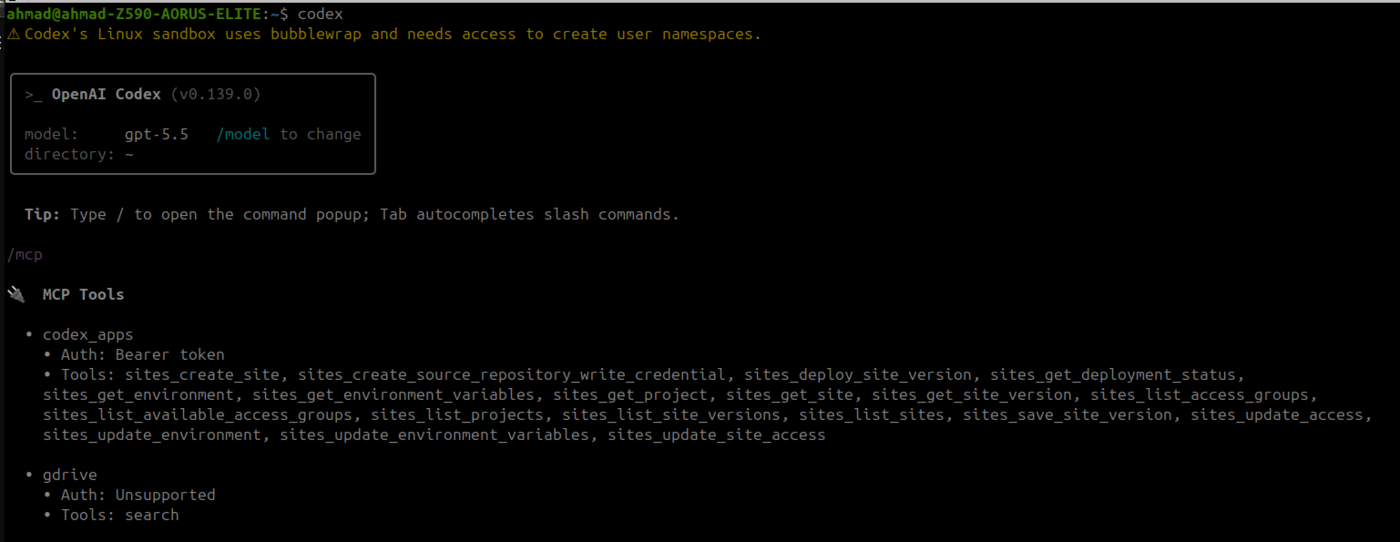

Codex MCP status showing the Google Drive MCP server

Test with:

search my Google Drive for resume

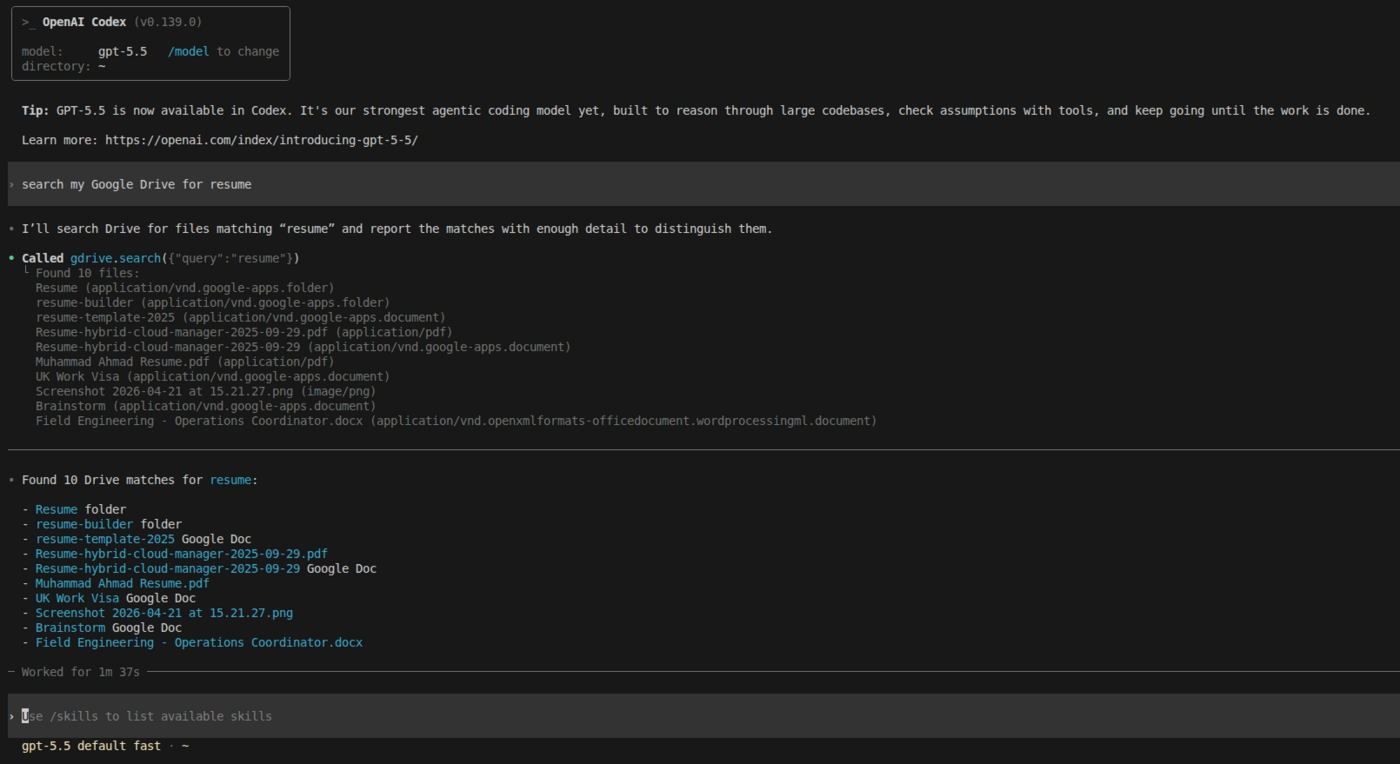

Codex searching Google Drive through the local MCP server

Important Limitation: Read Only

The local @modelcontextprotocol/server-gdrive package is an archived reference server. It is hardcoded to use:

https://www.googleapis.com/auth/drive.readonly

That makes it suitable for:

  • searching Drive
  • reading Drive files
  • exporting readable content from supported Google file types

It is not suitable for:

  • creating files
  • copying files
  • updating documents
  • deleting files

Adding broader scopes in Google Cloud is not enough by itself. The MCP server also needs to request those scopes and expose write-capable tools.

For write support, a better approach is a custom local MCP server using scopes such as:

https://www.googleapis.com/auth/drive.file

For editing Google Docs content, the server would also need the Docs API and an appropriate Docs scope.

Token Refresh Caveat

Google OAuth credentials include:

access_token
refresh_token
expiry_date
scope

The access_token is short-lived. A client normally refreshes it with the refresh_token, but in practice this archived local server can still return auth errors after token expiry or when the refresh token becomes invalid.

When that happens, rerun:

GDRIVE_OAUTH_PATH="$HOME/.config/gdrive-mcp/gcp-oauth.keys.json" GDRIVE_CREDENTIALS_PATH="$HOME/.config/gdrive-mcp/credentials.json" npx -y @modelcontextprotocol/server-gdrive auth

Then restart Codex so the MCP server process reloads the updated credentials file.

Lessons Learned

Prefer local MCP when OAuth compatibility matters

The hosted Google Drive MCP endpoint exposed more capabilities, but the OAuth flow did not fit Codex cleanly in this setup. The local server gave more control over credentials and execution.

Snap confinement can look like file permission failure

The Permission denied error was not fixed by chmod or chown. The root cause was Snap confinement.

OAuth scopes are real permissions

The token had:

https://www.googleapis.com/auth/drive.readonly

That was enough for search and read, but not enough for write operations. The MCP server also needed to implement write tools, which it did not.

MCP config starts servers; it does not run setup commands

Codex should start:

npx -y @modelcontextprotocol/server-gdrive

The browser-based auth step remains a separate administrative command.

Final Takeaway

The working setup is good for giving Codex read/search visibility into Google Drive:

Codex -> local MCP server -> Google Drive read/search

It is not a full Google Workspace automation layer. For write operations, the right next step is a dedicated write-capable MCP server with explicit Drive and Docs scopes.

tags: #Codex #MCP #GoogleDrive #GoogleCloud #OAuth #Linux #AIEngineering #DevOps #Automation
